K101 Mechanical Plunger Gauge

Name: K101 Mechanical Plunger Gauge
Brand: JUPITER TRADERS
Price: 5520 INR
Availability: InStock

Price 5520 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

K101 Mechanical Plunger Gauge Specification

Sensor Type
Mechanical Plunger

Measuring Range
0-100 psi

Frequency
50-60 Hz

Case
Stainless Steel

Outer Size
63 mm (2.5 inch)

Thread
1/8 NPT

Glass Size
Standard

Display
Analog

Bourdon Tube
Phosphor Bronze

Usage
Industrial

Material
Stainless Steel

Working Presssure
Up to 100 psi

Seal Material
Neoprene Rubber

Product Type
Mechanical Plunger Gauge

Grade
Industrial

Color
White

Application
Hydraulic and Pneumatic Systems

Accuracy
2% of full scale

Protection Class
IP54

Weight
Approx. 200 grams

Back Flange
Available on Request

Shock Resistance
Standard (Non-glycerin filled)

Ambient Temperature Range
-20°C to 60°C

Mounting Type
Bottom Connection

Pointer Material
Aluminum, Black

Adjustment
External Zero Adjustment

Dial Color
White with Black Markings

Operation
Direct Indication via Mechanical Plunger

K101 Mechanical Plunger Gauge Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
300000 Pieces Per Month

Delivery Time
1-2 Days

Main Domestic Market
All India

About K101 Mechanical Plunger Gauge

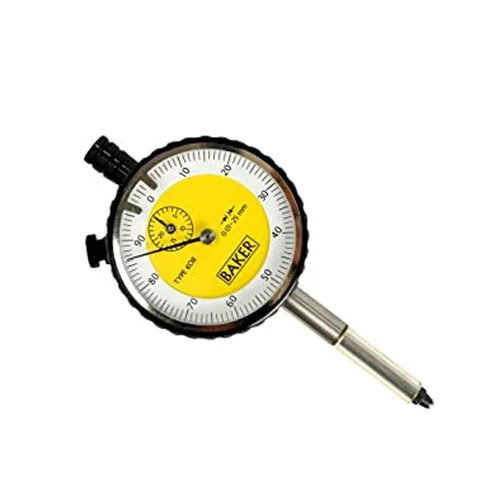

We are supplying K101 Mechanical Plunger Gauge, which includes mechanical dial gauges with cutting-edge features and technical details. It has a larger diameter face for easy reading and has a hardened stem for trouble-free clamping. This also has a hardened stem for free clamping, tungsten carbide ball anvil, rigid brass case, strong & smooth metal bezel, and spindle made of stainless steel. K101 Mechanical Plunger Gauge is mostly used in industrial sectors.

Product details

Bezel Diameter	105 mm
Graduation	0-50-0
Range	2.0 mm
Reading	0.01 mm
Model	K-101
Brand	Baker

Rugged and Reliable Design

Constructed with a durable stainless steel case and a phosphor bronze Bourdon tube, the K101 Mechanical Plunger Gauge is built to withstand industrial conditions. Its IP54 protection guards against dust and splashes, ensuring longevity and stable performance.

Effortless Operation and Clear Display

Direct pressure indication through the mechanical plunger simplifies user interaction, while the white dial with bold black markings allows for easy and accurate readings even in challenging environments. The externally adjustable zero point adds convenience for calibration.

Versatile Application and Easy Mounting

The K101 is suitable for both hydraulic and pneumatic systems, making it a versatile choice for various industrial needs. Its bottom connection (1/8 NPT) and optional back flange further enhance installation flexibility.

FAQ's of K101 Mechanical Plunger Gauge:

Q: How does the K101 Mechanical Plunger Gauge indicate pressure readings?

A: The K101 utilizes a mechanical plunger that directly actuates the analog pointer on the white dial, providing clear and straightforward pressure readings without the need for electrical power.

Q: What environments are suitable for installing this gauge, and what is its temperature range?

A: This gauge is rated IP54 for dust and splash protection, and operates reliably in ambient temperatures from -20C to 60C, making it suitable for most industrial indoor environments.

Q: When should I use the external zero adjustment feature?

A: The external zero adjustment should be used during installation or maintenance to ensure the gauge reads accurately when no pressure is applied, compensating for minor calibration shifts over time.

Q: Where is the best mounting position for the K101 Plunger Gauge?

A: The K101 is designed primarily for bottom connection installation (1/8 NPT thread), but a back flange is available on request for additional mounting options, catering to various panel or surface requirements.

Q: What process accuracy can I expect from this gauge?

A: The gauge offers an accuracy of 2% of full scale (0-100 psi), ensuring reliable readings for both hydraulic and pneumatic pressurized systems.

Q: How does the standard shock resistance affect usage in industrial settings?

A: The standard shock resistance provides basic protection against vibrations and minor impacts, making the gauge suitable for environments without severe mechanical shocks. For heavy-duty shock absorption, consider using additional protection.

Q: What are the benefits of choosing a mechanical plunger gauge like the K101?

A: Selecting the K101 provides robust, direct-reading performance without reliance on electricity, a compact size, easy zero adjustment, and compatibility across a range of industrial fluid applications.
